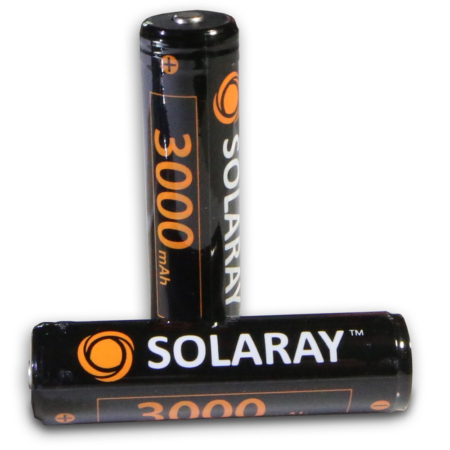

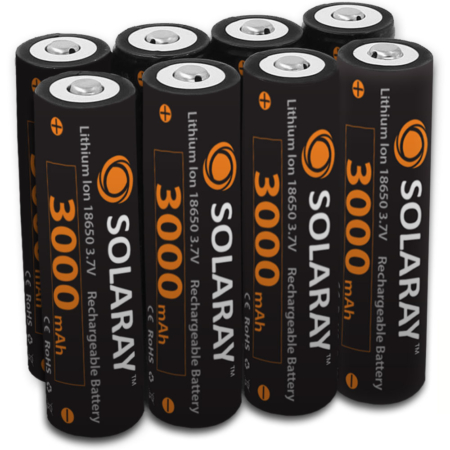

18650 Lithium Battery Cells: The Smart Choice for Power Hungry Projects

When you need reliable, high‑energy storage for everything from flashlights to electric bikes, the 18650 lithium battery cell stands out as the industry standard. Its compact cylindrical shape (18 mm diameter, 65 mm length) packs a surprising amount of 3000 mAh capacity. This combination of size, energy density, and safety features makes the 18650 the go‑to cell for hobbyists, DIY builders, and professional manufacturers alike.

Unmatched Energy Density and Longevity

The heart of the 18650’s appeal lies in its energy density. Compared with traditional alkaline AA or NiMH cells, a single 18650 can store up to five times more energy in the same footprint. This means fewer cells are needed to achieve the same run‑time, which translates into lighter, more compact devices. Moreover, these high‑quality 18650s boast a cycle life of 500‑1000 full charge‑discharge cycles before capacity drops below 80 %. For consumers who expect their gear to perform day after day, that longevity represents a tangible cost saving.

Consumers and manufacturers also appreciate the consistent discharge curve of the Solaray 18650 cells. Unlike alkaline batteries that sag dramatically under load, 18650 maintains near‑constant voltage until the last 10 % of capacity. This steadiness is critical for electronics that require a stable power supply, such as drones, power tools, and portable medical equipment.

NOTE: These batteries are NOT recommended for high-drain devices (i.e. Vaping Products).

Features and Benefits:

• Integrated PCB Protection
• Lithium Ion 18650 cylindrical rechargeable batteries
• Internal PCB protection prevents under-voltage at 2.5V and over-voltage at 4.25V
• Higher energy density and lower weight than many other rechargeable 18650 lithium flashlight batteries

Battery Specifications:

• Capacity: Nominal&: 3000mAh, Minimum: 2600 mAh
• Internal PCB protection prevents under-voltage at 2.5V and over-voltage at 4.25V
• Nominal Voltage: Average 3.7V
• Cut-off Voltage: 2.5V
• Internal Impedance: less or equal to 180 milli-ohm (with PTC)
• Cycle Performance: 90% of initial capacity at 400 cycles
• Cycle life: > 500 cycles
• Charge: Current = 0.5C (~1500mA) Voltage = 4.2 V End Current = 0.01 mA
• Discharge: Current = 0.5C (~1500mA) End Voltage = 3.0V
